Feature List -- PC

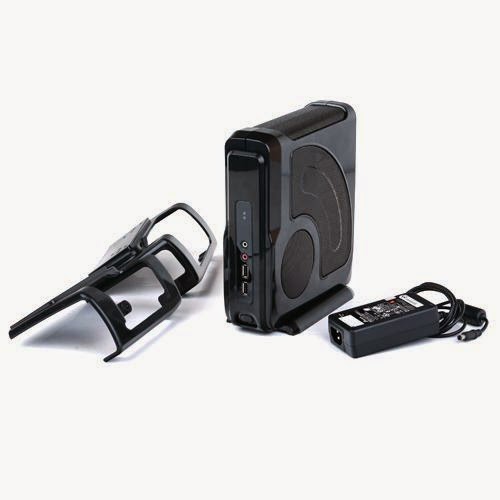

Chassis: T3322
M/B: PD10TI (Intel D2550MUD)
Memory: 2G
Storage: 32G SSD
Power Supply: Internal D2D - 80W
A/C- 60W
Incl.: Power Code and VESA Bracket
W/O OS
Warranty: 1 Year
Feature List --15" Touch Monitor
Panel size:15 inch TFT-LCD Touch Screen Monitor
Display area:304*228mm
Standard Resolution:1024*768
Number of Colors:16.2M
Brightness:300cd/m2
Response time:5ms
View angle:Horizontal:160°
Vertical:140°
Contrast ratio:500:01:00
Video input format (analog): RGB
Connector: VGA
USB (or RS232) for touch
Frequency: 30~80KHz/60~75Hz
Power supply: External Power Supply:100 to 240V (DC 12V)
Operation Environment:
Workable Temperature:-10 to 60°C Storage temperature:-20 to 70°C
Operate relative humidity:20% to 80%;storage relative humidity:10% to 90%
Touch model: 4-wire resistive touch
Optional (5-wire resistive touch , SAW, Infrared touch optional)
Duration:50000hours
touch validity: >1,000,000
Net weight: 6.0 Kgs/pcs,include stable mental base
Gross weight: 6.5 Kgs/pcs,include stable mental base
Power consumption : Max 30W
Setup (optional):
1) provide wall brackets for wall-mounting, VESA 75mm&100mm
2) provide stable mental base to support the monitor
OSD control: AUTO,+,POWER,-,MENU
brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset
Touch interface: USB or RS232 optional
Touch response time: 2ms
Certificate: CE, ROHS
Warranty 1 year,provide spare parts
Monitor size(not include base): 375*285*55mm
Each unit box size: 420*370*155mm
Package size: 4pcs in a carton,carton size:650*450*430mm
Operation system: Windows,Linux,Mac.
Chassis: T3322
M/B: PD10TI (Intel D2550MUD)
Memory: 2G
Storage: 32G SSD
Power Supply: Internal D2D - 80W
A/C- 60W
Incl.: Power Code and VESA Bracket
W/O OS
Warranty: 1 Year
Feature List --15" Touch Monitor
Panel size:15 inch TFT-LCD Touch Screen Monitor
Display area:304*228mm
Standard Resolution:1024*768
Number of Colors:16.2M
Brightness:300cd/m2
Response time:5ms
View angle:Horizontal:160°
Vertical:140°
Contrast ratio:500:01:00
Video input format (analog): RGB
Connector: VGA
USB (or RS232) for touch
Frequency: 30~80KHz/60~75Hz
Power supply: External Power Supply:100 to 240V (DC 12V)
Operation Environment:
Workable Temperature:-10 to 60°C Storage temperature:-20 to 70°C
Operate relative humidity:20% to 80%;storage relative humidity:10% to 90%
Touch model: 4-wire resistive touch
Optional (5-wire resistive touch , SAW, Infrared touch optional)
Duration:50000hours
touch validity: >1,000,000
Net weight: 6.0 Kgs/pcs,include stable mental base
Gross weight: 6.5 Kgs/pcs,include stable mental base
Power consumption : Max 30W
Setup (optional):
1) provide wall brackets for wall-mounting, VESA 75mm&100mm
2) provide stable mental base to support the monitor
OSD control: AUTO,+,POWER,-,MENU
brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset
Touch interface: USB or RS232 optional
Touch response time: 2ms
Certificate: CE, ROHS
Warranty 1 year,provide spare parts
Monitor size(not include base): 375*285*55mm
Each unit box size: 420*370*155mm
Package size: 4pcs in a carton,carton size:650*450*430mm
Operation system: Windows,Linux,Mac.
